Product introduction

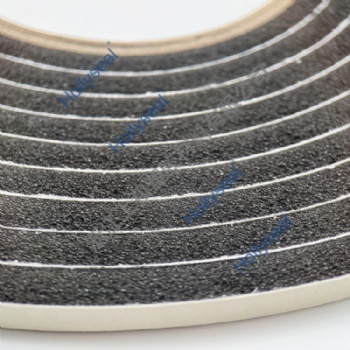

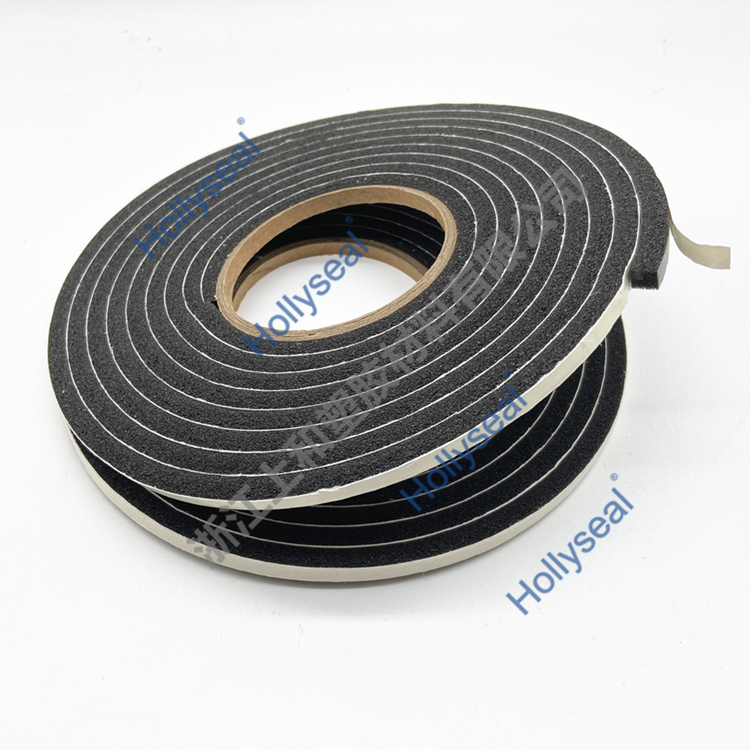

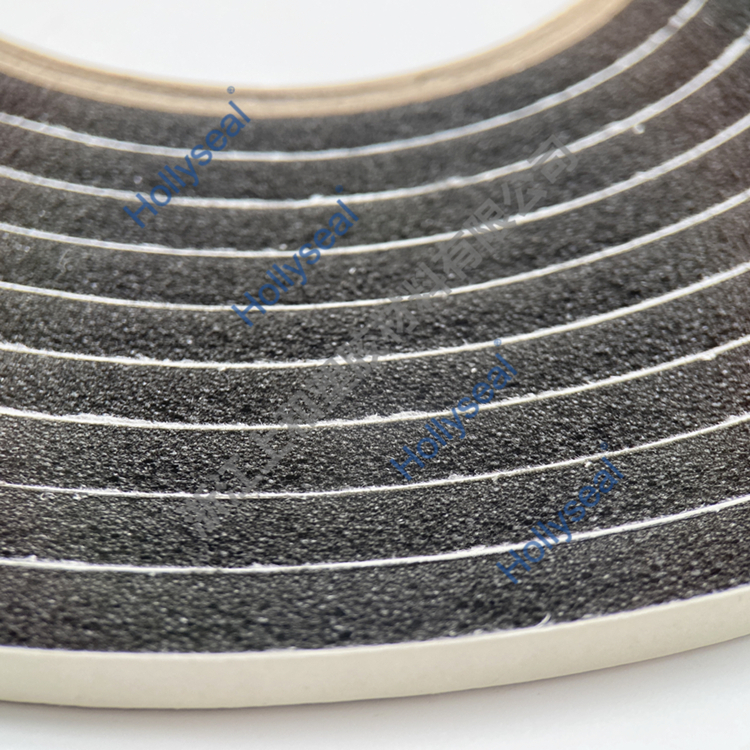

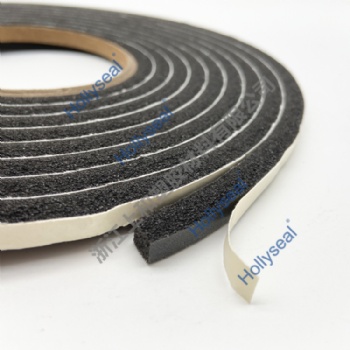

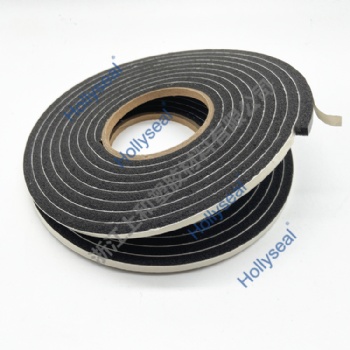

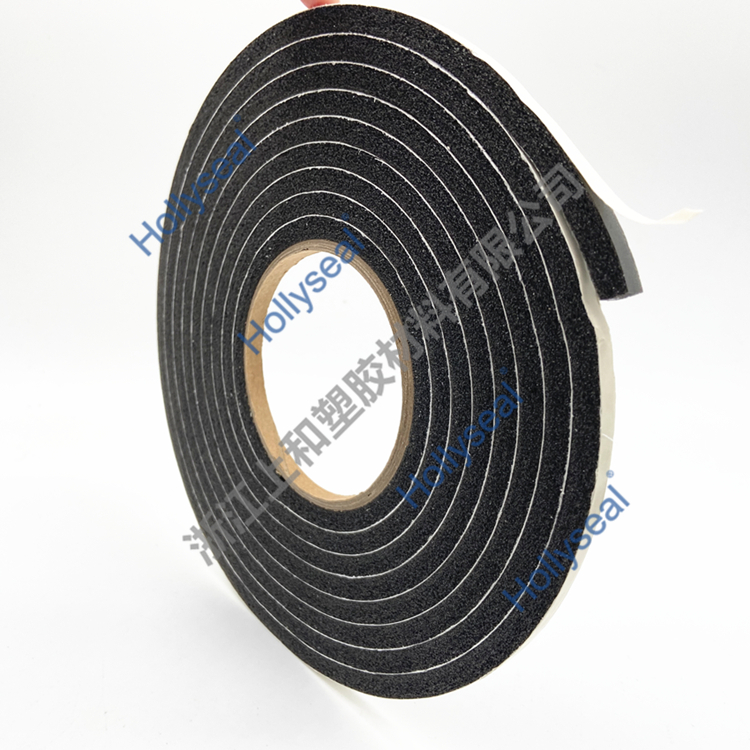

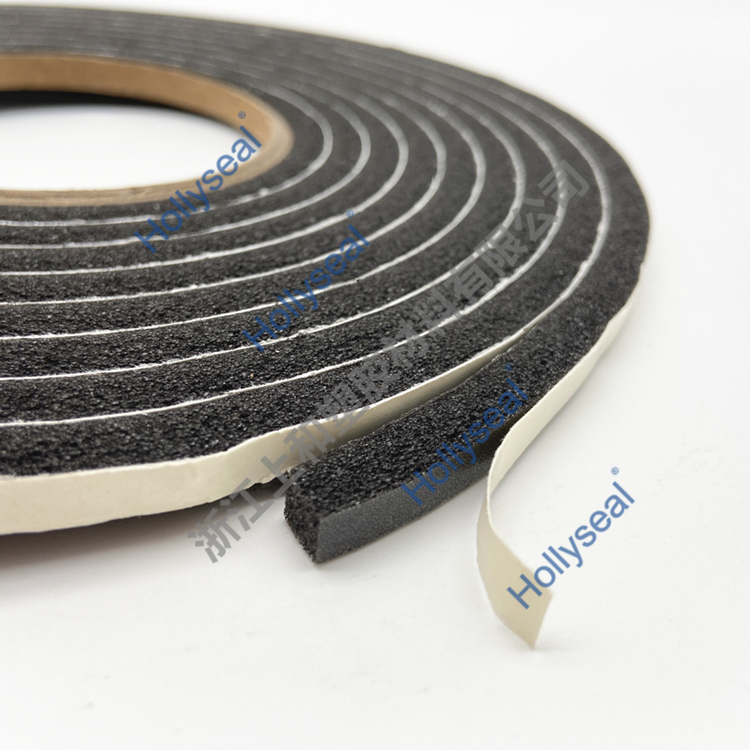

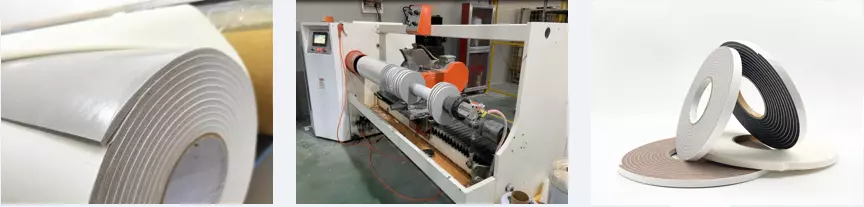

PVC foam tape is primarily a foam compression sealant.The foam is predominantly closed celled. An acrylic pressure sensitive adhesive is coated on one side, and the product has a paper release liner on the other non-adhesive face.It require 30% compression to create a water seal.It is ideal for applications such as appliance seals, wall panels, die-cut,gaskets, and window and door weatherstripping.
We manufacture finished goods in main types of PVC foam, which are:
●Quick recovery foams – where the material immediately recovers after compression
●Slow recovery PVC foams – ideal for filling irregular surfaces

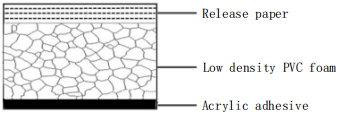

Product structural
● Excellent UV resistance and weather resistance
● Closed-cell foam which seals out air, dust and moisture
● Conform to curves and different shapes
● Good compression and adhesive
● Good vibration dampening and cushioning
● Thicknesses from 2 mm up to 25 mm
● Flame resistant product which meets FMVSS 302
● Dimension stability
Product application
● Access doors & HVAC seals
● Appliance seals
● Die-cut gaskets
● Cold room seals
● Window and door weatherstripping
● Electronic equipment
● Engine hatch covers
● Automotive application
Technical information
| Density | 130±20kg/m3 |
| Tensile Strength | ≥190 kPa |
| 30% Compression Set | ≤4% |
| Hardness（Shore 00） | 15±5° |
| Elongation | ≥210% |
| Flammability | UL94 HF-1/HBF FMVSS 302 (V-0 can be customized) |
